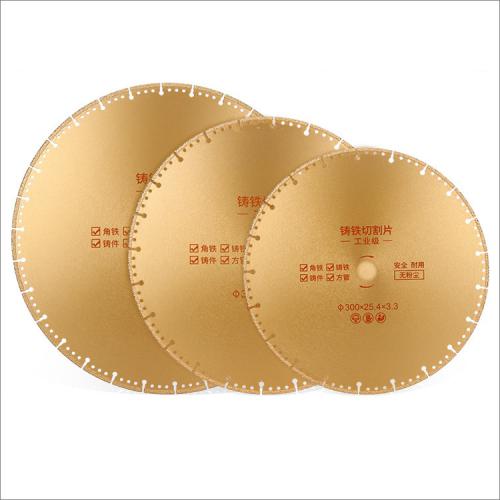

Diamond saw blades for steel metal general purpose cutting - vacuum brazed

item No : DSB-VB-01
Diameter: 100-500mm
Bore: 20/22.23/25.4/50/60mm
Segment height: 8mm
Production process: vacuum brazed

Diamond saw blades for steel metal & all purpose cutting - vacuum brazed

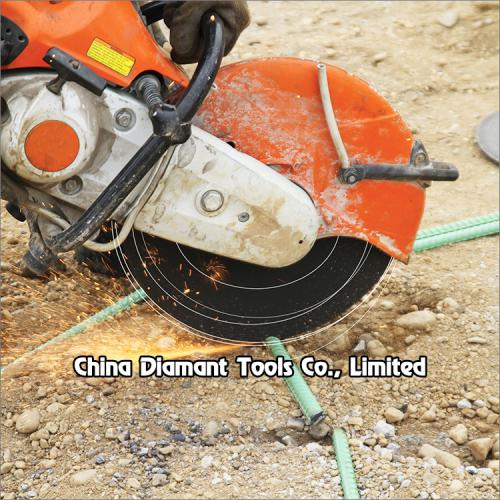

This type diamond multifunction saw blade is designed to cut through wide range tough material such as stone, bricks, blocks, cast iron, steel sections, ferrous and non-ferrous metal, drywall, reinforced concrete, fire door, plastic, PVC, etc., which is suitable for DIY, fire fighter, Rescue Team, Demolition Contractors.

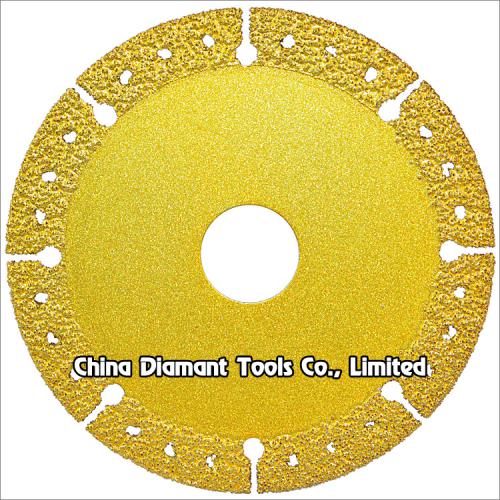

Aggressive diamond grains are firmly vacuum brazed onto the edge of steel core to create unbreakable and extremely heat resistant segments, which lead to extremely fast working with higher efficiency and longer life. The diamond is not easy to fall off, little sparks during cutting, it is very safe and no pollution.

Various diamond grain sizes and specification of the blades are available upon request.

Dry cutting, no water required, the saw blade is not easily deformed and the diameter will not decrease, but if water or other coolant is benefit for longer life .

Long lifetime for cutting metal materials, this brazing tools' lifetime is around 150 times than other ordinary grinding disc.


Not suitable for cutting: aluminum alloy, copper, wood.


Bore size: 25.4mm, 32mm, 50mm, 60mm or as per demand.

Welding method: vacuum brazed.


Code No.

Diameter

Segment Thickness

Segment Height

DSB-VB-01-100

100mm(4")

2.3mm

8mm

DSB-VB-01-115

115mm(4-1/2")

2.3mm

8mm

DSB-VB-01-125

125mm(5")

2.3mm

8mm

DSB-VB-01-150

150mm(6")

2.7mm

8mm

DSB-VB-01-180

180mm(7")

2.9mm

8mm

DSB-VB-01-200

200mm(8")

2.9mm

8mm

DSB-VB-01-230

230mm(9")

3.1mm

8mm

DSB-VB-01-250

250mm(10")

3.3mm

8mm

DSB-VB-01-300 300mm(12") 3.3mm 8mm
DSB-VB-01-350 350mm(14") 3.5mm 8mm
DSB-VB-01-400 400mm(16") 3.5/3.8mm 8mm
DSB-VB-01-500

500mm(20")

4.3mm

8mm


The above specifications & photos are for reference, other specification may be available as per demand.
