Electroplated diamond saw blade grinding disc for cutting marble ceramic soft stone

item No : DSB-EL-01
Diameter: 65mm-230mm
Bore Size: 5/8"-11,M14, 20mm,22.23mm,25.4mm
Diamond Grit: #40 or as per demand
Production process: electroplated

Inquiry Now

Detailed Description

Inquiry Now

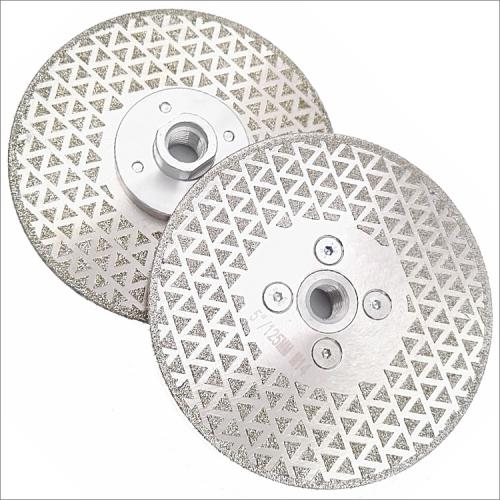

Electroplated diamond saw blade grinding disc for cutting marble ceramic soft stone granite

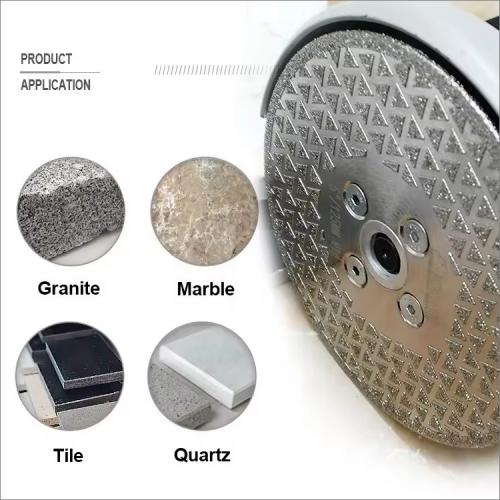

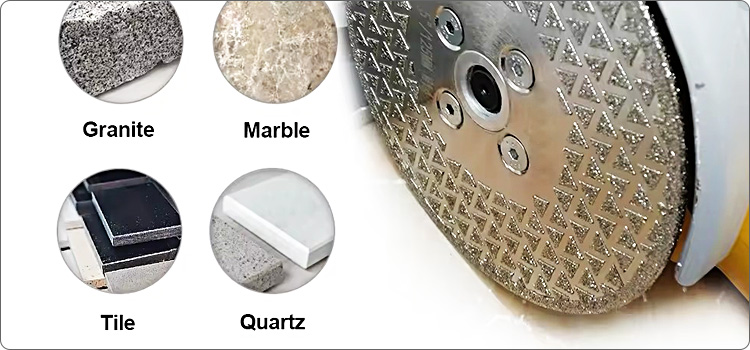

This type blades are designed for wet or dry cutting grinding soft stone, marble, ceramic, glass, fiberglass, gemstone, etc. with high cutting efficiency, low noise and flexible usage.

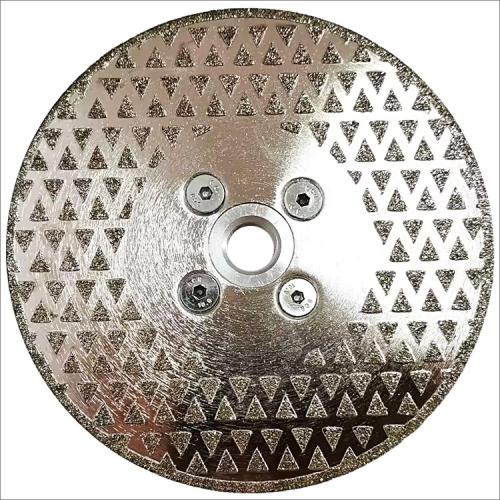

It is one type common tools for cutting and grinding non-metallic brittle materials. Electroplated technology keeps all diamond grain attached to the double sides of steel core, high diamond exposure rate provide high efficient working performance.

Wet working may prolong the working life, and not recommended for hard granite.

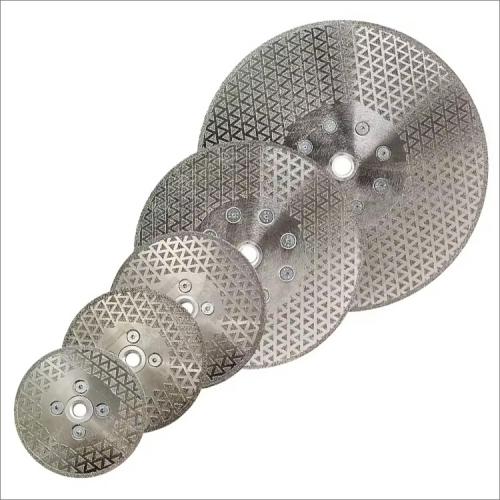

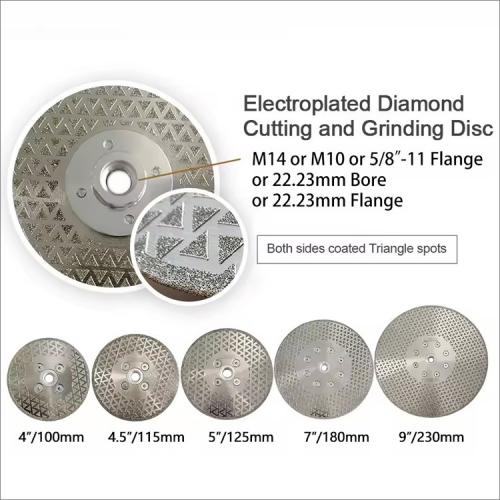

Code No.	Diameter	Diamond grit
DSB-EL-01-065	65mm	#40 or as per demand
DSB-EL-01-080	80mm	#40 or as per demand
DSB-EL-01-100	100mm(4")	#40 or as per demand
DSB-EL-01-115	115mm(4-1/2")	#40 or as per demand
DSB-EL-01-125	125mm(5")	#40 or as per demand
DSB-EL-01-150	150mm(6")	#40 or as per demand
DSB-EL-01-180	180mm(7")	#40 or as per demand
DSB-EL-01-200	200mm(8")	#40 or as per demand
DSB-EL-01-230	230mm(9")	#40 or as per demand

The above specifications & photos are for reference, other specifications may be available as per demand.

Electroplated diamond saw blade grinding disc for cutting marble ceramic soft stone
