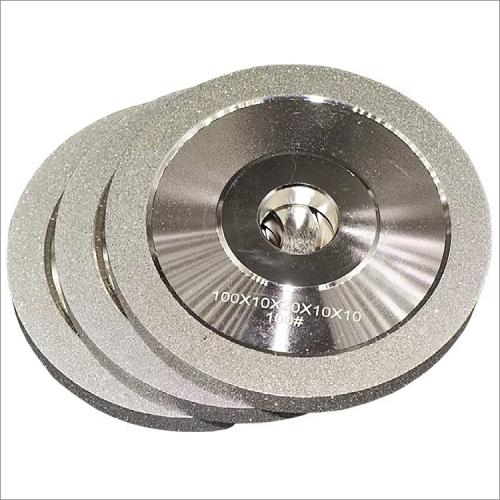

4 inches 100mm electroplated diamond grinding wheels sharpening discs for tungsten steel milling cutter

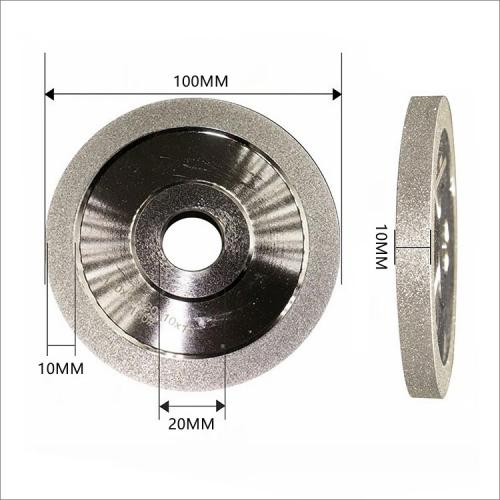

Code: DGW-EL07-100
Diameter: 4inches 100mm
Diamond coated width: 10mm
Diamond coated height: 10mm
Diamond grit: regular grit #100, #120, #150, #200, #240, #320, #400, #600.
Bore size: 20mm
This 4 inches 100mm electroplated diamond grinding wheel is mainly used for grinding sharpening hard alloy, tungsten steel milling cutters, also for glass, tiles, precious stones, magnetic materials, ceramics, molds and other materials edge grinding and chamfering.
Code: DGW-EL07-100.
Diameter: 100mm.
Diamond coated width: 10mm.
Diamond coated height: 10mm.
Diamond grit: regular grit #100, #120, #150, #200, #240, #320, #400, #600, the other grit is possible available.
Bore size: 20mm.
The high quality abrasives deliver smooth and consistent material removal, the electroplated premium quality diamond sand is evenly attached to the steel body and wear-resistant, not easy to drop, ensure long-lasting durability and sharpness.
Wet or dry use, wet working may prolong the working life.
The above specifications & photos are for reference, other specifications may be available as per demand.
