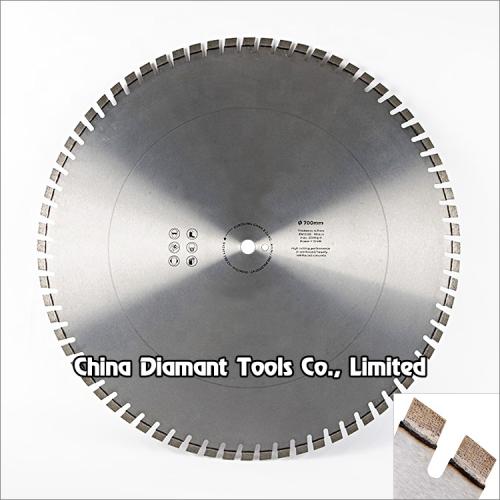

28 inches 700mm diamond saw blade for concrete wall floor cutting - diagonal Arix segments
Diameter: 700mm(28")
Bore: 50/60/80mm
Segment: 20x4.8x13.5mm*72pcs
Steel core thickness: 3.5mm
Blade type: normal
Production process: laser welded
Dry or wet use
28 inches 700mm diamond saw blades for concrete wall floor cutting - diagonal Arix segments
This 28 inches 700mm laser welded diamond saw blades with diagonal teeth and matrix segments used to cut openings in concrete walls for the replacement of doors, windows, duets and for removing walls and floors for expansion or demolition, fast cutting less fatigue smooth operation and long life.
Under same bond condition, the cutting speed and life of blades with diamond Arix segments are both minimum 20% more than other regular blades.
Code: SBW-06-700.
Diameter: 700mm(28").
Bore: 50/60/80mm.
Segment: 20x4.8x13.5mm*72pcs.
Steel core thickness: 3.5mm.
Blade type: normal.
Production process: laser welded.
Dry or wet use.
Widely used on the projects of civil engineering, structural steel, waterproofing, architectural renovation works, etc. to cut various materials such as steel bar, concrete, reinforced concrete, large dimension pipes or tubes, and other building materials.
Running on electric tracking machine, air or hydraulic saws, saw power from 10HP to 60HP.
Water coolant is benefit for longer cutting life.
Various bore sizes, bond types are available upon wall saw type, RPM, power, materials.
The specifications & photos are for reference, other specification may be available as per customer's demand.
