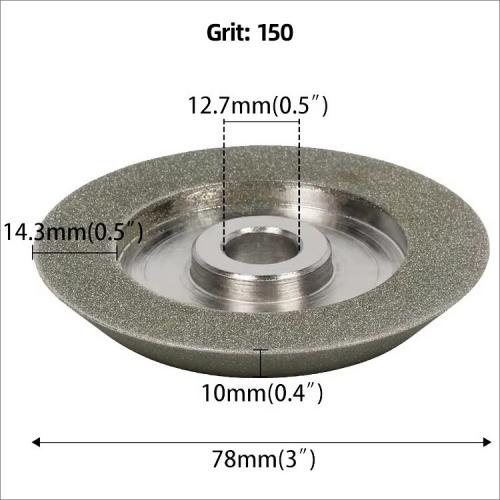

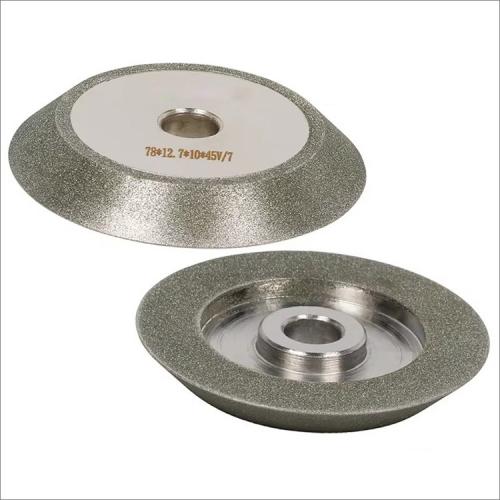

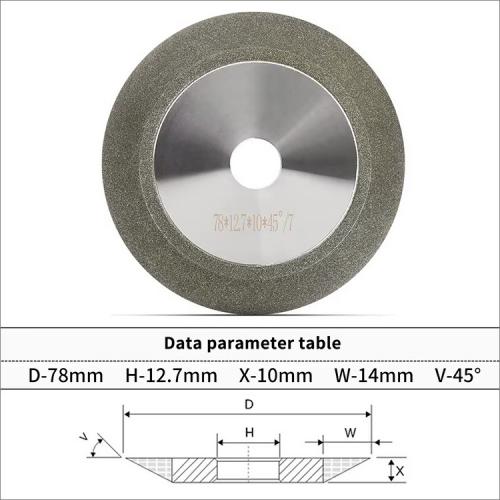

3 inches 78mm 45 degree electroplated diamond grinding wheel sharpening disc for alloy tungsten steel milling cutter
Diameter: 3 inches 78mm
Angle: 45 degree
Diamond coated width: 14.3mm
Diamond coated height: 10mm
Diamond grit: regular grit #150
Bore size: 12.7mm(0.5")
Wet or dry use
3 inches 78mm electroplated diamond grinding wheel sharpening disc for alloy tungsten steel milling cutter
The 3 inches 78mm electroplated diamond grinding wheel with 45 angle
degree is mainly
used for grinding sharpening hard alloy, tungsten steel milling
cutters, also for glass, tiles, precious stones, magnetic materials,
ceramics, molds and other materials edge grinding and chamfering.
The high quality abrasives deliver smooth and consistent material removal, the electroplated premium quality diamond sand is evenly attached to the steel body and wear-resistant, not easy to drop, ensure long-lasting durability and sharpness.
Featuring a 150 grit abrasive, this wheel provides a fine, uniform surface finish while effectively removing material from hardened tungsten steel tools.
Code: DGW-EL08-078-45D.
Diameter: 3 inches 78mm.
Angle: 45 degree.
Diamond coated width: 14.3mm.
Diamond coated height: 10mm.
Diamond grit: regular grit #150.
Bore size: 12.7mm(0.5").
Wet or dry use.
Wet working may prolong the working life.
The disc is compact and lightweight, making it easy to store and handle during daily use.
The specifications & photos are for reference, other specifications may be available as per demand.
