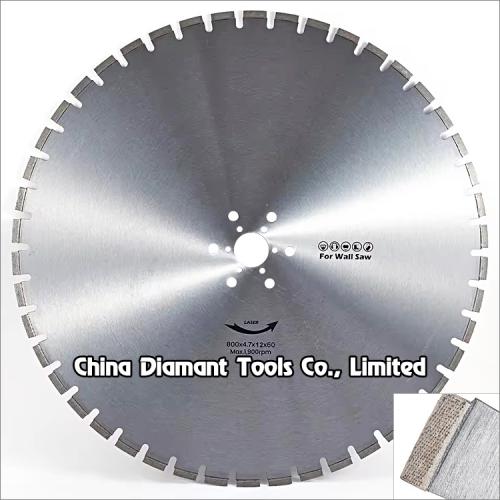

32 inches 800mm Arix segmented diamond saw blades for concrete wall floor cutting
Diameter: 800mm(32")
Bore: 60mm
Segment: 20x4.7x12mm*46pcs
Blade type: normal
Welding Type: laser welded
Dry or wet use
32 inches 800mm Arix segmented diamond saw blades for concrete wall floor cutting
This 32 inches 800mm laser welded diamond saw blades with normal flat 12mm height Arix segments used to cut openings in concrete walls for the replacement of doors, windows, duets and for removing walls and floors for expansion or demolition, fast cutting less fatigue smooth operation and long life.
Under same bond condition, the cutting speed and life of blades with diamond matrix segments are both minimum 20% more than other regular blades.
Code: SBW-07-800.
Diameter: 800mm(32").
Bore: 60mm.
Segment: 20x4.7x12mm*46pcs.
Blade type: normal.
Welding Type: laser welded.
Dry or wet use.
Widely used on the projects of civil engineering, structural steel, waterproofing, architectural renovation works, etc. to cut various materials such as steel bar, concrete, reinforced concrete, large dimension pipes or tubes, and other building materials.
Running on electric tracking machine, air or hydraulic saws, saw power from 10HP to 60HP.
Water coolant is benefit for longer cutting life.
Various bore sizes, bond types are available upon wall saw type, RPM, power, materials.
The specifications & photos are for reference, other specification may be available as per customer's demand.
