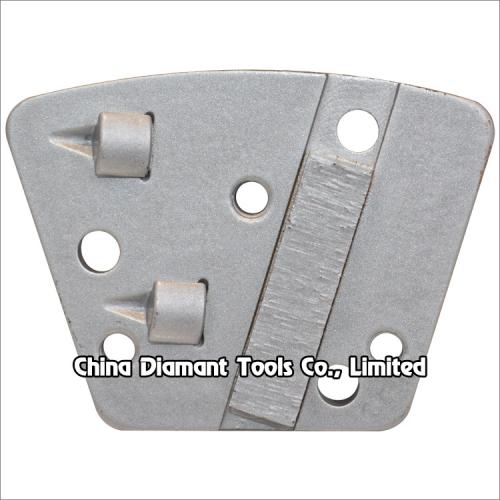

Trapezoid PCD grinding shoes concrete terrazzo floor pads - with assisted bar segment

item No : DGP-TRA-P03
Segment type: 2 PCD + 1 Diamond
PCD size: 1/4 round
PCD No.: 2pcs
Diamond Segment: 40x10x5mm*1pc

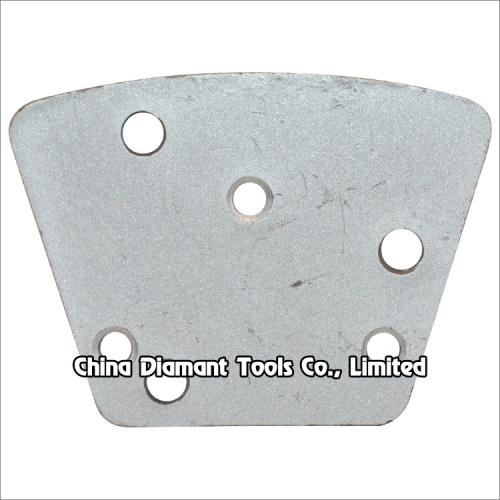

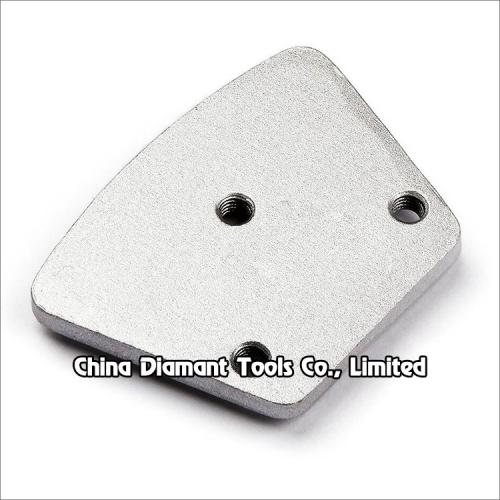

Body: steel base
Material grinding: concrete/terrazzo floor

Trapezoid PCD grinding shoes / concrete floor grinding pads - 2pcs 1/4 round PCDs & 1pc bar diamond segment


This PCD trapezoid grinding shoe with 2pcs 1/4 round PCD segments and 1pc assisted bar diamond segment is designed for concrete floor restoration professional, for quick removal of most coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete terrazzo floor.


This grinding pad is ideal for the initial steps in concrete polishing procedures, good to coarse grinding concrete surface quickly, make the surface leveling, and achieve maximum square footage at minimum cost.


Used on universal floor grinding machine.

Available in a left or right orientation.


Code No.

PCD Size/No.

Diamond Segment

Base Specification

DGP-TRA-P03

1/4 Round*2pcs

40x10x5mm

#30

3 holes

(M6/9mm/bare holes)

or as per demand


The above specifications & photos are for reference, other specification may be available as per demand.
