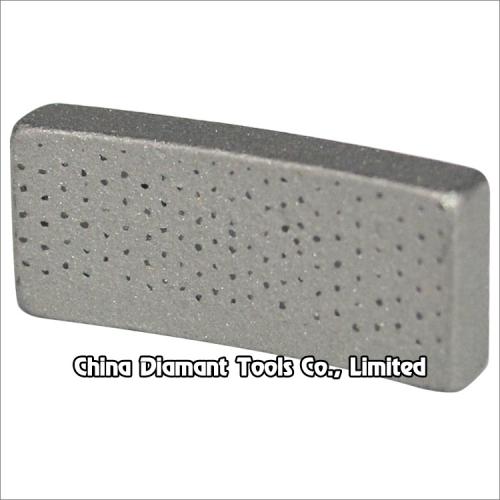

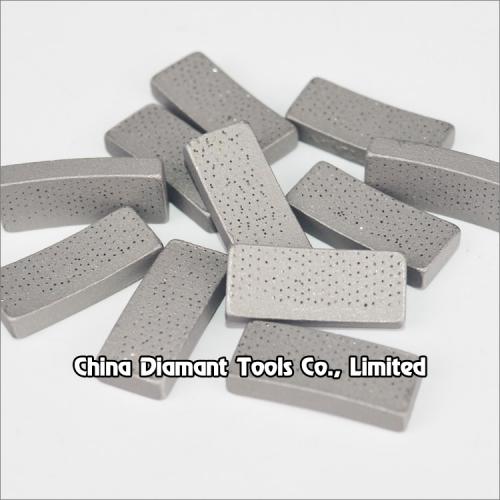

Diamond segments of drill bits - matrix arix segments

item No : DSDB-11
For diameter: 22-356mm
Segment size: H10mm
Materials drilling: concrete
Production process: hot-press sintered
Welding type: silver welding

Diamond segments of drill bits - matrix (arix) segments


Diamond matrix segments of drill bits provide smooth and fast drilling for various materials.

Under same bond condition, the drilling speed and life of diamond matrix segments are both minimum 20% more than other regular segments.

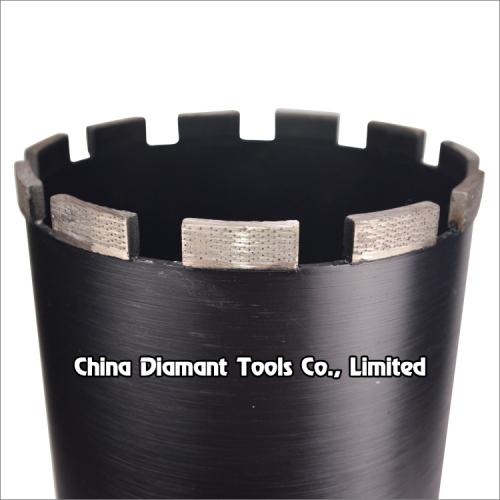

Applications: Widely used for replacement of used segments on diamond drill bits for drilling cured concrete, green concrete, reinforced concrete, brick, block, masonry, stone, or other abrasive materials, such as air conditioner installation, pipeline, high way, road signs, bridges, airports for high speed drilling.


Different bonds are available for different applications.

Welding method: silver or laser welding.

Wet use with sufficient water.


Code No.

Diameter

Segment Size

Segment No.

DSDB-11-22

7/8"(22mm)

16x3.0x10

3
DSDB-11-25

1"(25mm)

16x3.0x10

4
DSDB-11-29

1.18"(29mm)

16x3.0x10

4
DSDB-11-32

1.25"(32mm)

16x3.0x10

4
DSDB-11-35

1.38"(35mm)

16x3.0x10

4
DSDB-11-38

1.50"(38mm)

16x3.0x10

5
DSDB-11-42

1.63"(42mm)

16x3.0x10

5
DSDB-11-45

1.75"(45mm)

16x3.0x10

6
DSDB-11-48

1.88"(48mm)

16x3.0x10

6
DSDB-11-52

2"(52mm)

16x3.0x10

7
DSDB-11-57 2.25"(57mm) 22x3.5x10 5
DSDB-11-63 2.50"(63mm) 22x3.5x10 6
DSDB-11-70 2.75"(70mm) 22x3.5x10 7
DSDB-11-76 3"(76mm) 22x3.5x10 8
DSDB-11-82 3.25"(82mm) 22x3.5x10 9
DSDB-11-89 3.50"(89mm) 22x3.5x10 10
DSDB-11-102 4"(102mm) 22x3.5x10 10
DSDB-11-108 4.25"(108mm) 22x3.5x10 11
DSDB-11-114 4.50"(114mm) 22x3.5x10 11
DSDB-11-120 4.75"(120mm) 24x4.0x10 11
DSDB-11-127 5"(127mm) 24x4.0x10 11
DSDB-11-140 5.5"(140mm) 24x4.0x10 12
DSDB-11-146 5.75"(146mm) 24x4.0x10 13
DSDB-11-152 6"(152mm) 24x4.0x10 13
DSDB-11-159 6.25"(159mm) 24x4.0x10 14
DSDB-11-165 6.5"(165mm) 24x4.0x10 15
DSDB-11-178 7"(178mm) 24x4.0x10 16
DSDB-11-203 8"(203mm) 24x4.5x10 18
DSDB-11-229 9"(229mm) 24x4.5x10 20
DSDB-11-254 10"(254mm) 24x4.5x10 23
DSDB-11-280 11"(280mm) 24x5.0x10 25
DSDB-11-305 12"(305mm) 24x5.0x10 27
DSDB-11-330 13"(330mm) 24x5.5x10 30
DSDB-11-356 14"(356mm) 24x5.5x10 32


The above specifications & photos are for reference, other specification may be available as per demand.
