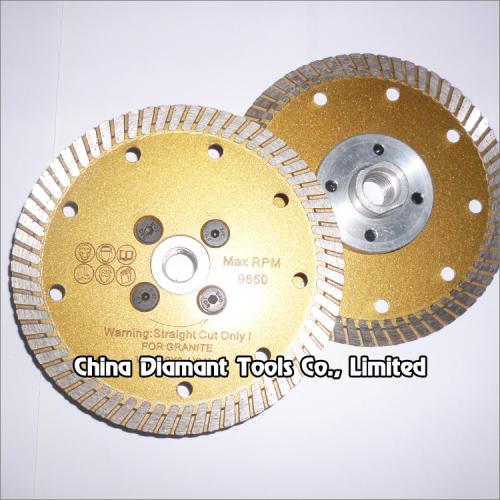

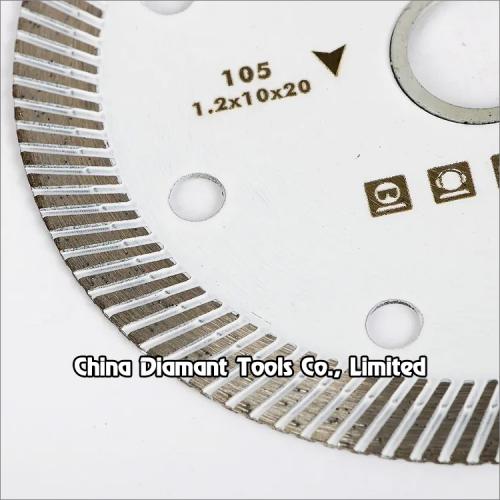

Diamond dry cutting saw blades - narrow turbo continuous rim segments

item No : DCHS-010
Diameter: 105-230mm
Bore: 20/22.23mm
Segment height: 8/10mm
Segment type: narrow turbo continuous rim
Production process: hot-press sintered

Diamond dry cutting saw blades - hot-press sintered, narrow turbo continuous rim segments


Hot press sintered diamond saw blades with narrow turbo continuous rim segments for fast dry cutting various hard, medium, soft stone such as granite, marble, sandstone, limestone, etc. without water or with less water.

Also we can make the segments bond for general cutting of other materials such as concrete, asphalt, ceramic, bricks, etc..

Dry or wet use, water coolant is benefit for longer cutting life.

Usually used on: angle grinders, table saws, handheld saw machines.


Bore size: 15.88mm(5/8"), 20.00mm, 22.23mm(7/8") or as per demand.

Production process: hot-press sintered.


Code No.

Diameter

Segment

Thickness

Segment

Height

DCHS-010-105

105mm(4")

1.2/1.4/1.8/2.4mm

8mm/10

DCHS-010-110

110mm(4.25") 1.4/1.8/2.0mm

8/10mm

DCHS-010-115

115mm(4.5")

2.4mm

10mm

DCHS-010-125

125mm(5")

2.4mm

8/10mm

DCHS-010-150

150mm(6")

2.6mm

8/10mm

DCHS-010-180

180mm(7")

2.8mm

8/10mm

DCHS-010-200

200mm(8")

2.8mm

10mm

DCHS-010-230

230mm(9")

3.0mm

10mm


The above specifications & photos are for reference, other specification may be available as per demand.
