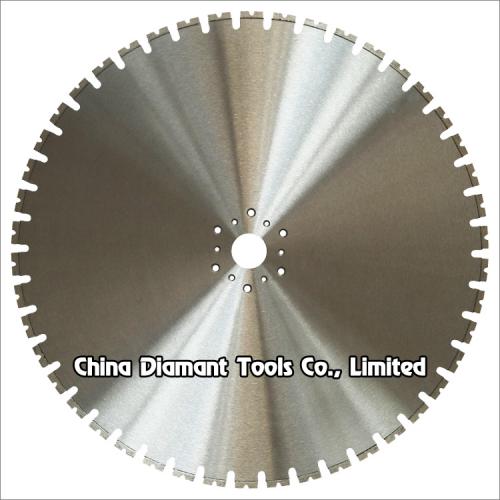

Diamond saw blades for concrete wall cutting - V slot segments

item No : SBW-05
Diameter: 450mm-1800mm
Bore: 25.4-80mm
Segment height: 12mm

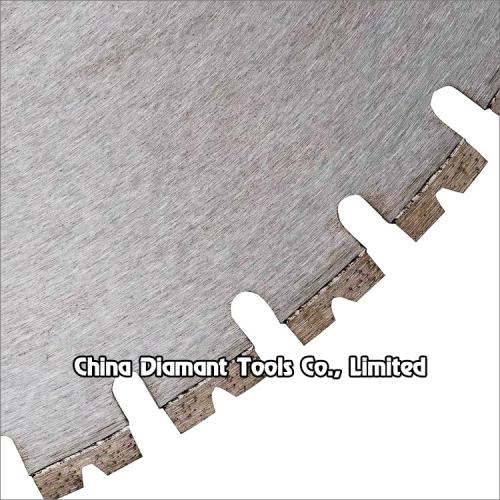

Segment type: V slot shape
Production process: silver or laser welding

Diamond saw blades for concrete wall cutting - V slot segments


Laser or silver welded diamond saw blades with V slot segments used to cut openings in concrete walls for the replacement of doors, windows, duets and for removing walls and floors for expansion or demolition, fast cutting less fatigue smooth operation and long life.

Widely used on the projects of Civil engineering, structural steel, waterproofing, architectural renovation works, etc. to cut various materials such as steel bar, concrete, reinforced concrete, large dimension pipes or tubes, and other building materials.

Running on electric tracking machine, air or hydraulic saws, saw power from 10HP to 60HP.

Dry or wet use.

Various bore sizes, bond types are available upon wall saw type, RPM, power, materials.


Bore size: 25.4mm, 30.5mm, 35mm, 50mm, 60mm, 80mm or as per demand.

Steel core thickness: 3.5mm or as per demand.

Welding type: Laser welded or silver welded(1600-1800mm, wet use only).


Code No.

Diameter

Segment Size

(L x W x H mm)

Segment No.
SBW-05-450

450mm(18")

40x4.6x12mm

30
SBW-05-500

500mm(20")

40x4.6x12mm

32
SBW-05-600

600mm(24")

40x4.6x12mm

35
SBW-05-625 625mm(25")

40x4.6x12mm

36
SBW-05-650

650mm(26")

40x4.6x12mm

38
SBW-05-700

700mm(28")

40x4.6x12mm

40
SBW-05-750

750mm(30")

40x4.6x12mm

42
SBW-05-800

800mm(32")

40x4.6x12mm

46
SBW-05-900

900mm(36")

40x4.6x12mm

52
SBW-05-1000

1000mm(40")

40x4.6x12mm

58
SBW-05-1200

1200mm(48")

40x4.6x12mm

68
SBW-05-1400 1400mm(56")

40x4.6x12mm

86
SBW-05-1500 1500mm(60")

40x4.6x12mm

90
SBW-05-1600 1600mm(64")

40x4.6x12mm

92
SBW-05-1800 1800mm(72")

40x4.6x12mm

106


The above specifications & photos are for reference, other specification may be available as per customer's demand.
