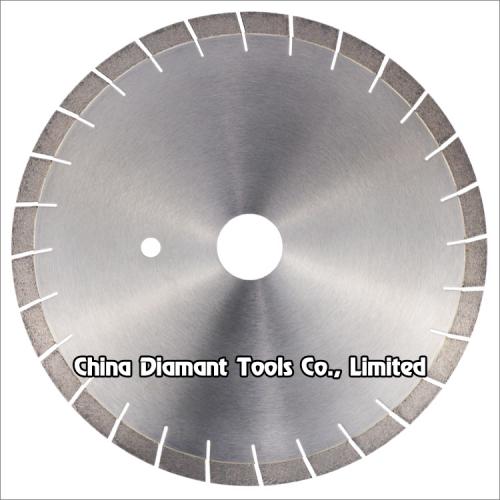

Diamond saw blades for granite slab edge cutting - diagonal matrix segments

item No : SBEG-11
Diameter: 250-600mm
Bore: 50mm,60mm
Body type: normal or silent
Segment height: 12-20mm
Material cutting: granite,hard stone
Segment structure: matrix(arix)
Production process: high-frequency welded

Diamond saw blades for granite slab edge cutting - diagonal matrix segments


Diamond saw blades with diagonal matrix segments for cutting slab edge of granite, sandstone, various hard stones with quartz, fast and smooth cutting with long life.

Under same bond condition, the cutting speed and life of blades with diamond matrix segments are both minimum 20% more than other regular blades.

The blades are mostly used on manual edge cutting machines, bridge cutting machines or table cutting machines.

Wet use only with sufficient water.



Segment height: 12mm, 15mm, 20mm.

Steel core type: silent or non-silent(normal).

Bore size: 50/60mm, or as per demand.

Welding method: by high-frequency welding machine.


Code No.

Diameter

(mm/Inch)

Segment Height

(mm)

Segment No.

(pcs/set)

SBEG-11-01

250mm(10")

12/15

18

SBEG-11-02

300mm(12")

12/15

21

SBEG-11-03

350mm(14")

12/15/20

24/25

SBEG-11-04

400mm(16")

12/15/20

28

SBEG-11-05

450mm(18")

12/15/20

32

SBEG-11-06

500mm(20")

12/15/20

36

SBEG-11-07

550mm(22")

12/15/20

38

SBEG-11-08

600mm(24")

12/15/20

42


The above specifications & photos are for reference, other specification may be available as per demand.
