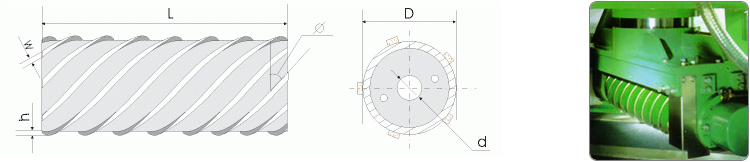

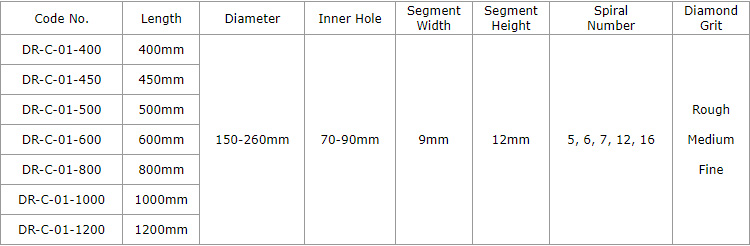

Diamond rollers for ceramic grinding tile calibrating
item No : DR-C-01
Diameter: 156-260mm
Inner hole: 70-90mm
Segmented length: 400-1200mm
Segment size: W9*H12mm
Spirals: 5/6/7/12/16
Diamond grit: rough,medium,fine
Diameter: 156-260mm
Inner hole: 70-90mm
Segmented length: 400-1200mm
Segment size: W9*H12mm
Spirals: 5/6/7/12/16
Diamond grit: rough,medium,fine

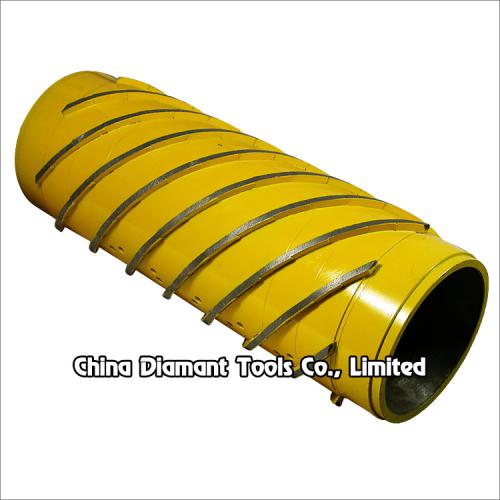

Diamond rollers for ceramic tile calibrating
Diamond roller is most commonly used to calibrate and achieve a uniform thickness on ceramic tiles surface before polishing.
Due to the continuous technical improvement, our calibrating roller has high sharpness, longer working lifetime, lower energy consumption, low working noise and stable performance.
The above specifications & photos are for reference, other specification may be available as per demand.
