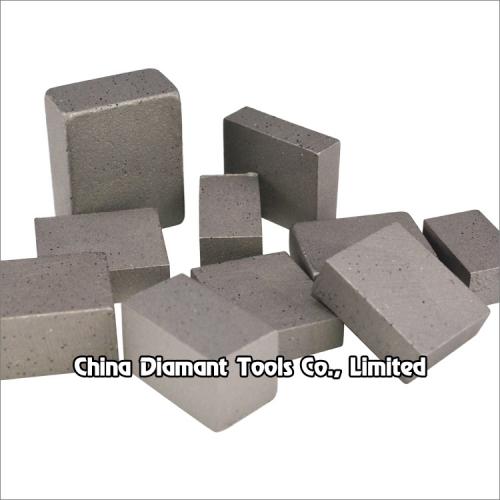

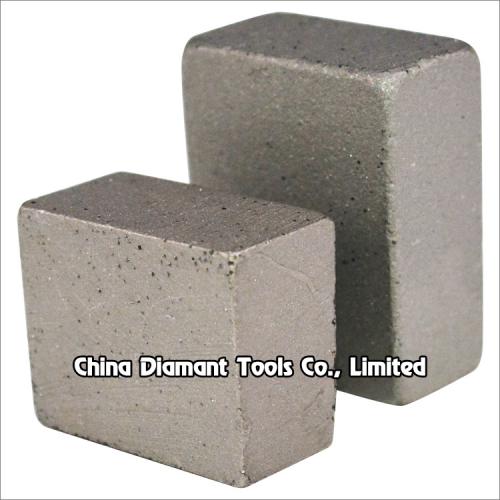

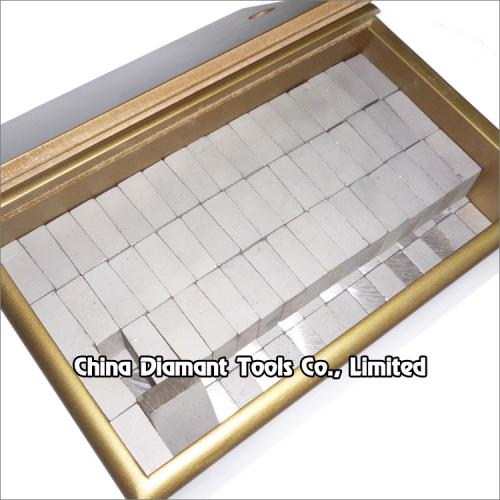

900mm-3500mm diamond segments for granite hard stone block cutting - taper shape

item No : DSGB-01
For diameter: 900-3500mm
Segment size: H12-30mm
Materials cutting: granite,hard stone
Production process: hot-press sintered
Welding type: high-frequency silver welding

900mm-3500mm Diamond segments for granite hard stone block Cutting - taper shape

Sandwich or multi-layer structure


Diamond Segment taper shape with sandwich/mulit-layer structure of 900-3500mm circular saw blades for block cutting of granite, sandstone, various hard stone with quartz.

Suitable for bridge cutting machines, single arm cutting machines.

Wet use only with sufficient water, coolant material put into water is benefit for faster cutting.

Welding method: silver/copper welding by high frequency welding machine.


for granite block cutting



high frequency welding



sandwich structure

multi-layer structure


Code No.

Diameter

(mm)

Segment Dimension

(L×W×H)mm

Segment No.

(pcs/set)

DSGB-01-0900

900

24x7.0/6.5x12/15/20

64

DSGB-01-1000

1000

24x7.0/6.5x12/15/20

70

DSGB-01-1100

1100

24x7.4/6.8x12/15/20

74

DSGB-01-1200

1200

24x7.5/7.0x12/15/20

80

DSGB-01-1350

1350

24x8.4/7.7x12/15/20

88

DSGB-01-1400

1400

24x8.5/8.0x12/15/20

96

DSGB-01-1600

1600

24x9.0/8.4x12/15/20

104/108

DSGB-01-1700

1700

24x9.4/8.4x12/15/20

112

DSGB-01-1800

1800

24x9.5/9.0x12/15/20

120

DSGB-01-2000

2000

24x10.5/9.5x12/15/20

128

DSGB-01-2200

2200

24x11.5/10.5x12/15/20

132/136

DSGB-01-2500

2500

24/30x12.0/11.0x20/25/30

140

DSGB-01-2700

2700

24/30x12.0/11.0x20/25/30

140

DSGB-01-3000

3000

24/30x12.5/11.5x20/25/30

160

DSGB-01-3500

3500

24/30x13.5/12.5x20/25/30

180


The above specifications & photos are for reference, other specification may be available as per demand.
