3 inches 78mm electroplated
diamond grinding wheel sharpening disc for alloy tungsten
steel milling cutter
The 3 inches 78mm electroplated diamond grinding wheel with 45 angle
degree is mainly
used for grinding sharpening hard alloy, tungsten steel milling
cutters, also for glass, tiles, precious stones, magnetic materials,
ceramics, molds and other materials edge grinding and chamfering.
The high quality
abrasives deliver smooth and consistent material removal, the
electroplated premium quality diamond sand is evenly attached to the
steel body and wear-resistant, not easy to drop, ensure long-lasting
durability and sharpness.
Featuring a 150 grit
abrasive, this wheel provides a fine, uniform surface finish while
effectively removing material from hardened tungsten steel tools.

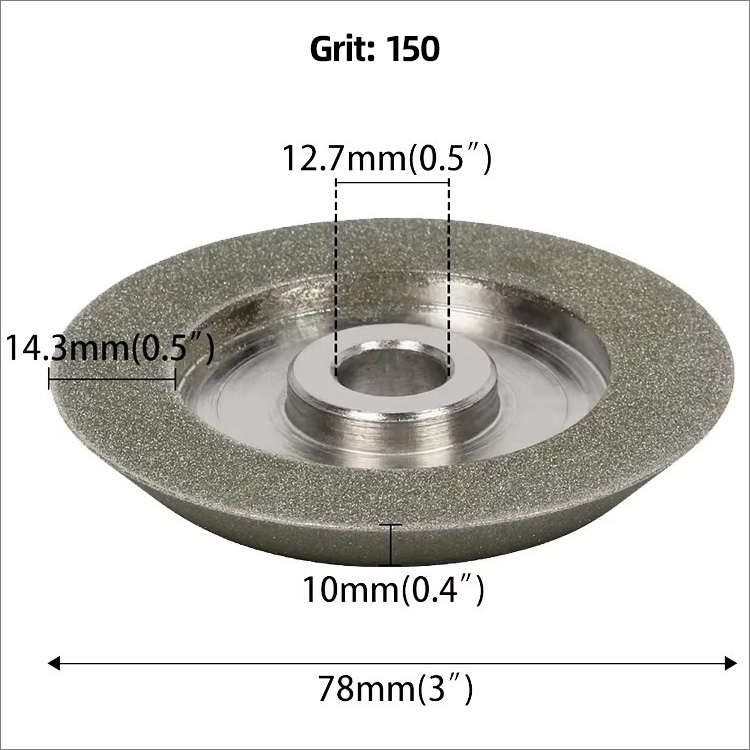

Code:
DGW-EL08-078-45D.
Diameter: 3 inches 78mm.
Angle: 45 degree.
Diamond coated width: 14.3mm.
Diamond coated height: 10mm.
Diamond grit: regular grit #150.
Bore size: 12.7mm(0.5").
Wet or dry use.
Wet working may prolong
the working life.
The disc is compact and lightweight, making it easy to store and
handle during daily use.
The specifications & photos are for reference, other specifications
may be available as per demand.
