32 inches 800mm Arix segmented diamond
saw blades for
concrete wall floor cutting

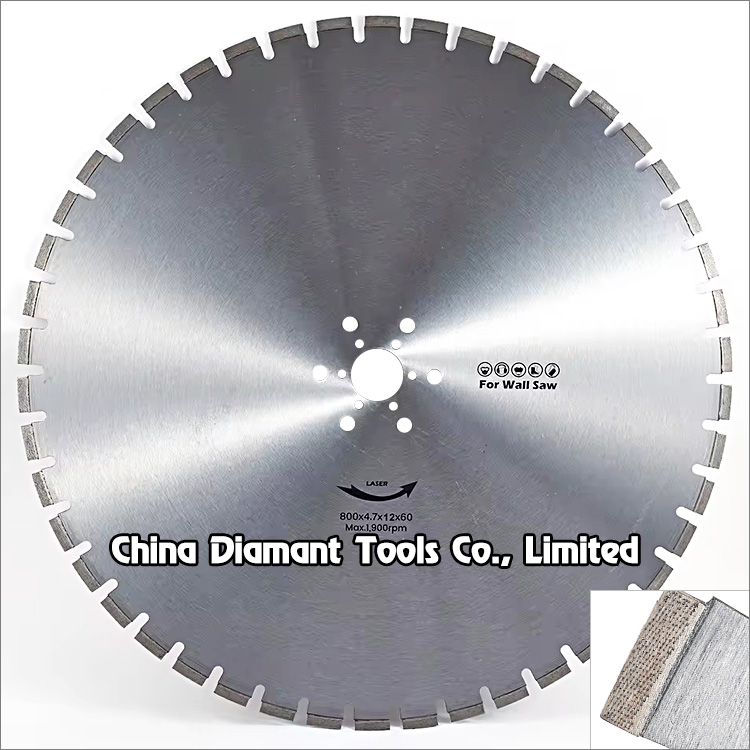

This 32 inches 800mm laser welded diamond saw blades
with normal flat 12mm height Arix segments used to cut openings in concrete walls
for the replacement of doors, windows, duets and for removing walls and
floors for expansion or demolition, fast cutting less fatigue smooth
operation and long life.
Under same bond condition, the
cutting speed and life of blades with diamond matrix
segments are both minimum 20% more than other regular
blades.
Code:
SBW-07-800.
Diameter: 800mm(32").
Bore: 60mm.
Segment: 20x4.7x12mm*46pcs.
Blade type: normal.
Welding Type: laser welded.
Dry or wet use.
Widely used on the projects
of civil engineering, structural steel, waterproofing, architectural
renovation works, etc. to cut various materials such as steel bar,
concrete, reinforced concrete, large dimension pipes or tubes, and other
building materials.
Running on electric tracking
machine, air or hydraulic saws, saw power from 10HP to 60HP.
Water coolant is benefit for longer cutting life.
Various bore sizes, bond types are available
upon wall saw type, RPM, power, materials.
Different specifications of bores:
The specifications & photos are for reference, other specification
may be available as per customer's demand.
| Warm Prompt: |
For your personal
protection, to take good care of your
eyes/ears/face/hands/body/etc., before you start working we
recommend that you wear safety glasses, dust aspirators,
welding gloves, safety shoes, and other appropriate
equipment.
|
