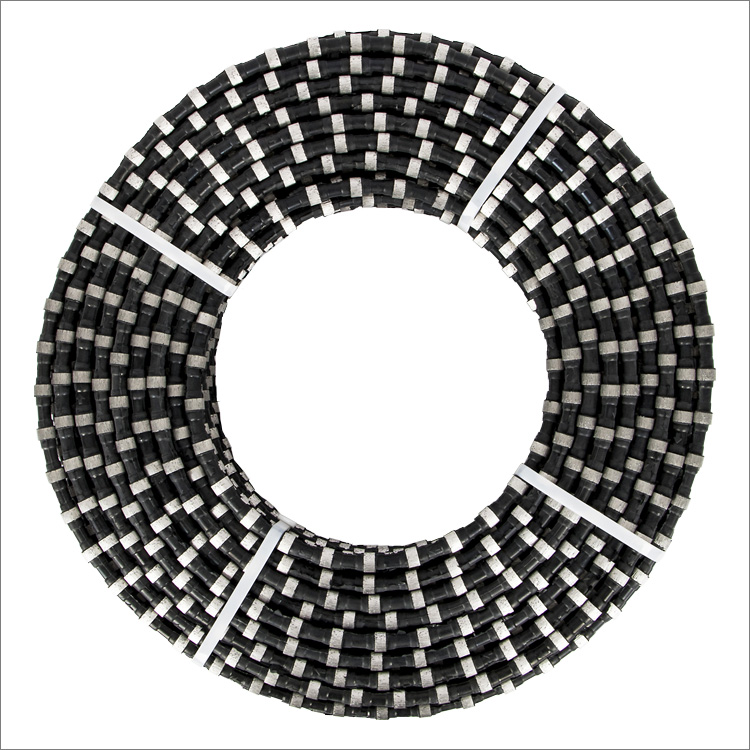

11.5mm Diamond Wire Saw Cutting Granite Quarry

With the promotion of this technology, the situation of high consumption of resource, low output, small size of block, danger, pollution can be hugely improved.

Code: DWSGQ11.5-01.

Diameter: 11.5mm.

Fixing type: rubber.

Beads No.: 40pcs/m.

Material cutting: granite quarry.

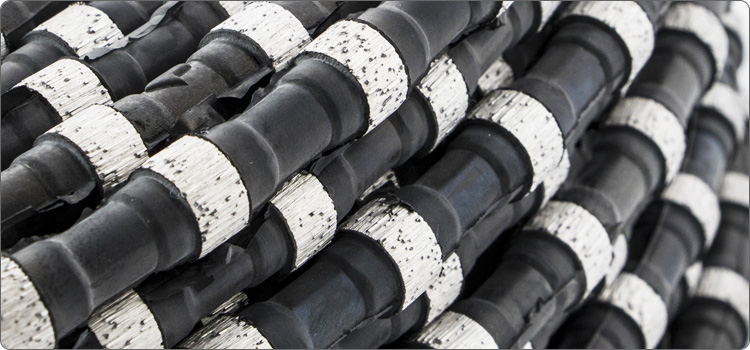

This rubber coated diamond wire saw are widely used for granite quarries. The main specialties of diamond wire-saws are :

To be able to used for great area granite quarries cutting;
To get high percentage of forming dimension stone;
High manufacture efficiency;
Safety, low-noise, no-dust and friendly surroundings;
Low cutting cost.

Code No.	Diameter	Beads No. pcs/M
DWSGQ11.5-01	Ф11.5mm	40pcs

The above specifications & photos are for reference, other specification may be available as per demand.

Recommendations:

For granite quarry, the cables are in general fitting by injection of vulcanized rubber, the advantage is better adheres to the beads and support cable, which protect it better from the action of abrasive pastes. The rubber wire easily withstands increases in temperature caused by badly controlled water spraying is power 11-75KW. The water spraying between 25-50 L/min according to the cut dimension.
