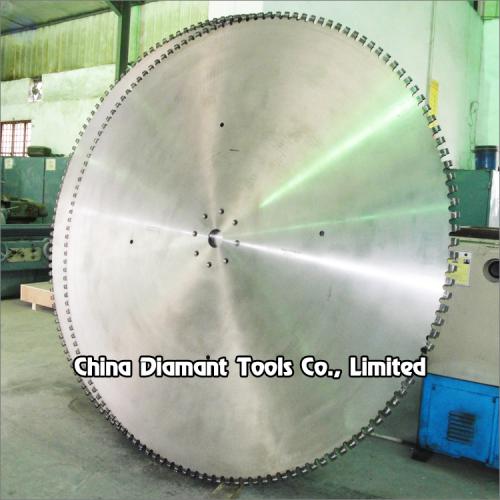

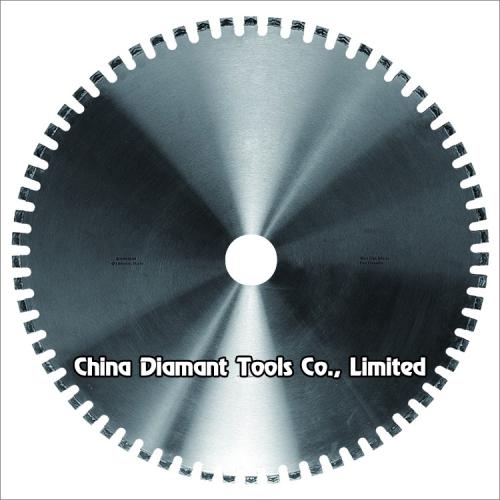

900mm-3500mm diamond circular saw blades for granite block cutting

item No : DSB-GBC-01
Diameter: 900-3500mm
Core thickness: 5-10mm
Blade type: single blade
Material cutting: granite,hard stone
Segment structure: multi-layer or sandwich

900mm-3500mm diamond circular saw blades for granite block cutting (Single Blade)

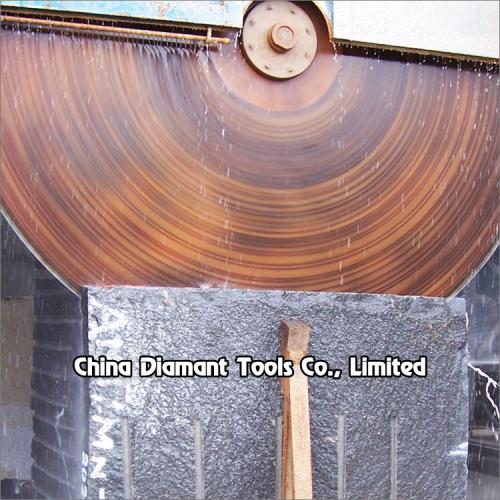

Diamond segmented circular saw blades for block cutting of granite, sandstone, slate, various hard stone with quartz, suitable for bridge block cutter, gantry block cutting machine or single arm stone cutting machines, cutting granite blocks to slabs or tiles (stripes).


Welding method: Silver welded by high frequency welding machine.

Wet use only with sufficient water, fast & smooth cutting, long life, high ratio of performance to price.


Segment structure: Multi-Layers or Sandwich.


Code No.

Diameter

(mm)

Segment Dimension

(L×W×H mm)

Segment No.

DSB-GBC-01-0900

900

24x7.0/6.5x10/12/15/20

64

DSB-GBC-01-1000

1000

24x7.0/6.5x10/12/15/20

70

DSB-GBC-01-1100

1100

24x7.4/6.8x12/15/20

74

DSB-GBC-01-1200

1200

24x7.5/7.0x12/15/20

80

DSB-GBC-01-1300

1300

24x8.0/7.5x12/15/20

88

DSB-GBC-01-1350

1350

24x8.4/7.7x12/15/20

88

DSB-GBC-01-1400

1400

24x8.5/8.0x12/15/20

96

DSB-GBC-01-1600

1600

24x9.0/8.7/8.4x12/15/20

104/108

DSB-GBC-01-1700

1700

24x9.4/8.9/8.4x12/15/20

112

DSB-GBC-01-1800

1800

24x9.5/9.0x12/15/20

120

DSB-GBC-01-2000

2000

24x10.5/10/9.5x15/20

128

DSB-GBC-01-2200

2200

24x11.5/11/10.5x15/20

132/136

DSB-GBC-01-2500

2500

24/30x12/11.5/11x15/20/25/30

140

DSB-GBC-01-2700

2700

24/30x12/11.5/11x15/20/25/30

140

DSB-GBC-01-3000

3000

24/30x12.5/12/11.5x15/20/25/30

160

DSB-GBC-01-3500

3500

24/30x13/12.5/12x15/20/25/30

180


The following are the different shapes design of diamond segments:


DSGB-01

Taper Shape, Block Cutting



DSGB-02

Taper << Shape, Block Cutting



DSGB-03

Male&Female < Top, Block Cutting



DSGB-04

Taper || Shape, Block Cutting

DSGB-05

Taper W Top, Block Cutting

DSGB-06

Taper W Top <<, Block Cutting


The above specifications is for reference, other Specifications may be available as per demand.


Remarks:


Diamond saw blade used for granite block cutting in diameter 900mm up to 3500mm is called granite block cutting saw blade, there is two type of granite block cutter, one is single blade and the other is multi cutter. In this title, we describe diamond saw blade for single blade granite block cutter.


Popular diameter in use are diameter 1200mm, 1600mm, 2000mm, 2500mm and 3000mm, cutting granite tiles or slabs from 45cm (1200mm blade) up to 135cm (3000mm blade) as per sizes needed from order or works. Most factories use non-silent or normal steel blank in their production considering the cost factor. Silent steel blank for bigger diameter blade is much more expensive and not so economic compared to bridge saw blades in smaller diameters and less cost.
