Diamond Dry Cutters

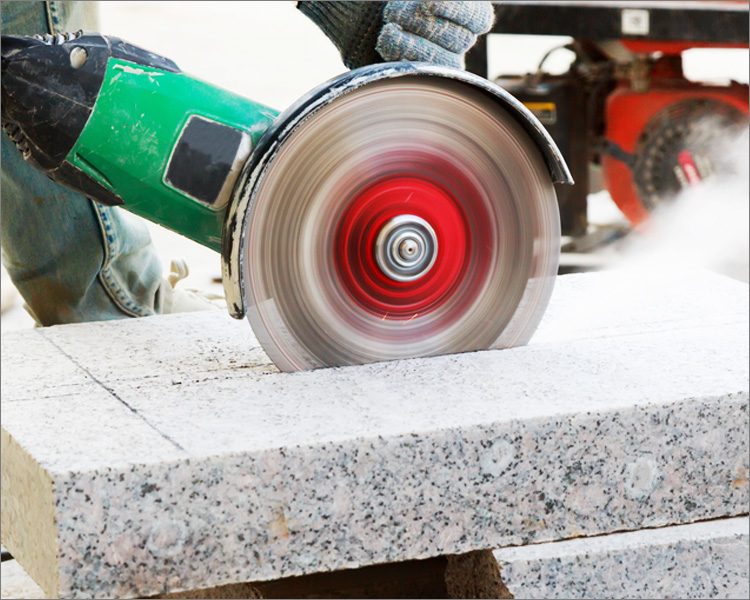

Diamond Dry Cutters (Small Diameter Diamond Saw Blades), diameter from 4"(105mm) - 9"(230mm), for fast cutting Kinds of Hard, Medium Hard, Soft Stone, like Granite, Marble, Sandstone, Limestone etc.



Hot Sintered or Laser Welded.

(Please noted: we don't supply cold pressed saw blades.)



Dry or Wet Use!



Diameter

Segment Height (mm)

Bore (mm)

105mm(4")

8/10

Standard Height: 8mm

15.88mm(5/8")

20.00mm

22.23mm(7/8")

25.40mm(1")

115mm(4.5")

8/10

125mm(5")

8/10

150mm(6")

8/10

180mm(7")

8/10

200mm(8")

8/10

230mm(9")

8/10





Hot Sintered Dry Cutters



Diamond Dry Cutters Segmented Diamond Dry Cutters Continuous Rim Diamond Dry Cutter Continuous Rim J-Slot

CD-DC-01

Segmented

CD-DC-02

Continuous Rim

CD-DC-03

Continuous Rim J-Slot

Diamond Dry Cutter Segmented Turbo

Diamond Dry Cutter Wide Turbo Rim

Diamond Dry Cutter Narrow Turbo Rim

CD-DC-04

Segmented Turbo

CD-DC-05

Wide Turbo Rim

CD-DC-06

Narrow Turbo Rim

Diamond Dry Cutter Super Thin Narrow Turbo

Diamond Dry Cutter Wide Turbo Rim Protecting Teeth

Diamond Dry Cutter Protecting Teeth

CD-DC-07

Super Thin Narrow Turbo

CD-DC-08

Wide Turbo Rim with Small

Protecting Teeth

CD-DC-09

Narrow Turbo Rim with Big

& Small Protecting Teeth

Diamond Dry Cutter Protecting Teeth

Diamond Dry Cutter Protecting Teeth



CD-DC-10

Segmented Turbo With Big

& Protecting Teeth

CD-DC-11

Segmented Turbo with Big

Protecting Teeth







Laser Welded Dry Cutters



The following laser welded blades are also suitable for general purpose such as concrete, asphalt, ceramic, bricks, masonry materials, etc. cutting.



CD-DC-L01

Normal Segmented

Laser Welded

CD-DC-L02

Turbo Segments

Laser Welded

CD-DC-L03

Turbo Rim Segments

Laser Welded



CD-DC-L04

Spiral Turbo Segments

Laser Welded

CD-DC-L05

Turbo V Groove Segments

Laser Welded







Dry Cutters with Flange



Diamond Dry Cutter flange

105mm-150mm

with Small Flange

180mm-230mm

with Big Flange

Small Diameter with

4 Flange Holes



Small Flange Back

Big Flange Back







The above specifications & photos is only for Reference, other or special specification can be ordered by customers.



Safety First !



Before mounting the saw blade ensure that the machine cannot start (pull out main plug).
Rotational direction arrow of the saw blade has to match the spindle rotational direction.
Not suitable for grinding – grinding can lead to serious injury through segment break outs.
Saw specification has to be appropriate for the material to be cut.


Do not tilt the saw blade in the cut.
Do not carry out any curved cuts.
Allow cooling down breaks, if saw blade is sparking heavily (use reciprocating cut).
Use protective clothing.



ChinaDiamant is not responsible for any accident due to wrong operation!



Please use the following before operating the cutting:
